1. Why Do You Need to Look Up Aluminum Grades?

In the fields of engineering and manufacturing, selecting the right material is a critical factor for success. Questions like: What are aluminum grades AA6061, A5052, or A7075? How do they differ? Are there equivalent grades under European (EN) or Japanese (JIS) standards? These are common inquiries. Accurately looking up aluminum and aluminum alloy grades helps ensure product quality, material compatibility, and cost optimization. This article will serve as a comprehensive guide to help you decode these designations.

2. Decoding the Aluminum Alloy Designation System (AA Standard)

The designation system from the U.S. Aluminum Association (AA) is the most common and widely recognized system globally. It uses a 4-digit number to classify wrought aluminum alloys.

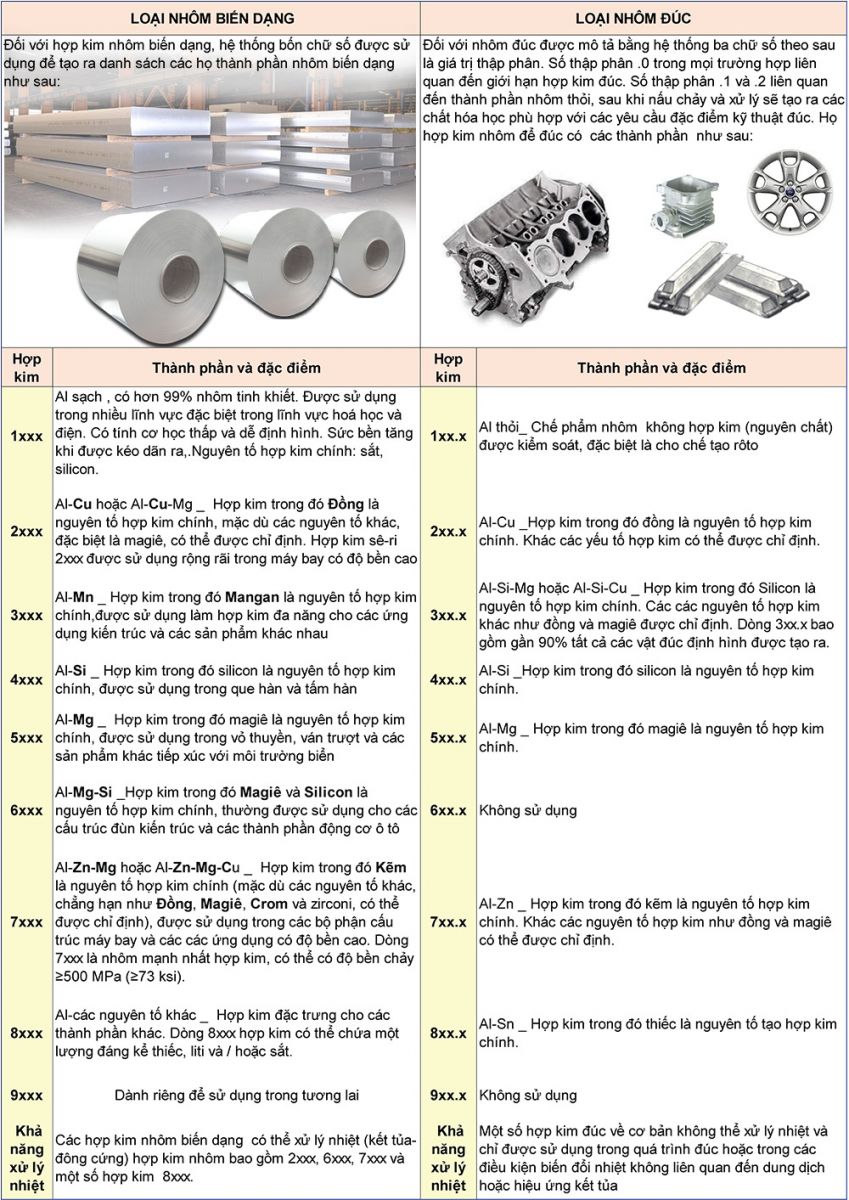

Meaning of the First Digit:

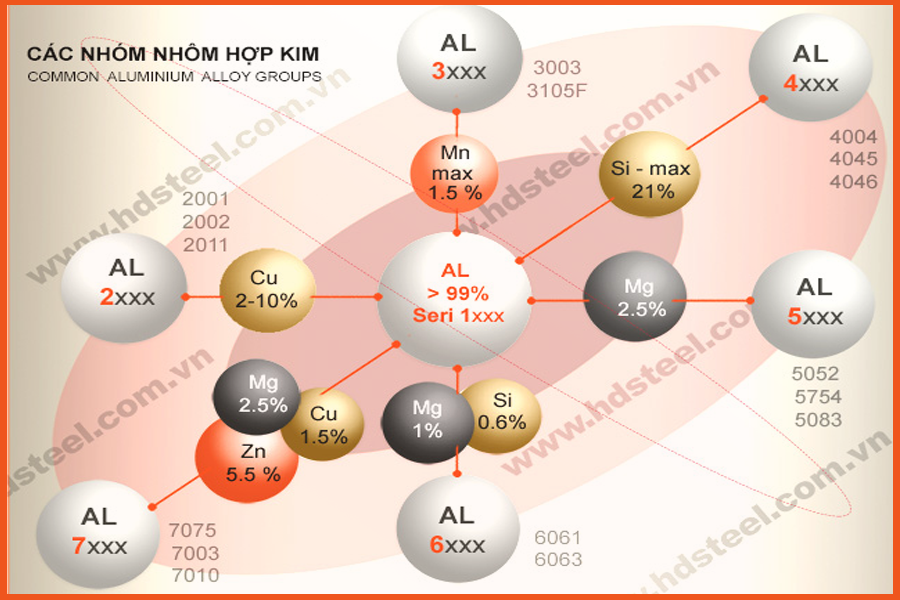

The first digit of the aluminum grade indicates the alloy group with its primary alloying element:

• 1xxx: Pure Aluminum (≥ 99.0% purity)
• 2xxx: Aluminum alloyed with Copper (Cu)
• 3xxx: Aluminum alloyed with Manganese (Mn)
• 4xxx: Aluminum alloyed with Silicon (Si)
• 5xxx: Aluminum alloyed with Magnesium (Mg)
• 6xxx: Aluminum alloyed with Magnesium (Mg) and Silicon (Si)
• 7xxx: Aluminum alloyed with Zinc (Zn)
• 8xxx: Aluminum alloyed with other elements

Meaning of the Temper Designation:

The letters following the grade (e.g., -T6, -O, -H14) indicate the material's processing condition:

• -F: As-fabricated, with no special control over thermal conditions or strain-hardening.
• -O: Annealed, the softest and most ductile condition.
• -Hxx: Strain-hardened (by cold working). Examples: H14, H32.
• -Txx: Heat-treated to produce stable tempers. Examples: T6 (artificially aged), T4 (naturally aged).

3. Equivalent Aluminum Grades Cross-Reference Chart

Below is a quick cross-reference chart for common aluminum alloys and their equivalent designations under different international standards, helping you easily compare and select materials.

4. How to Look Up Detailed Information?

When you need more in-depth information on specific chemical compositions or detailed mechanical properties of an aluminum grade, you can consult the following sources:

• Manufacturer's Documentation: Always request a Mill Test Certificate (MTC) to accompany materials like aluminum sheets or aluminum coils.
• Specialized Books: Textbooks on metallurgy or material grade handbooks.
• Online Database Websites: Many websites like Matweb or Total Materia allow free lookup of technical specifications for thousands of materials.

Contact Us for In-Depth Consultation

Choosing the right aluminum grade is the first step to ensuring the success of your project. If you need more detailed advice on selecting and looking up the most suitable aluminum alloys for your needs, do not hesitate to contact H&D Company. We are always ready to provide technical support and high-quality products at competitive prices.
